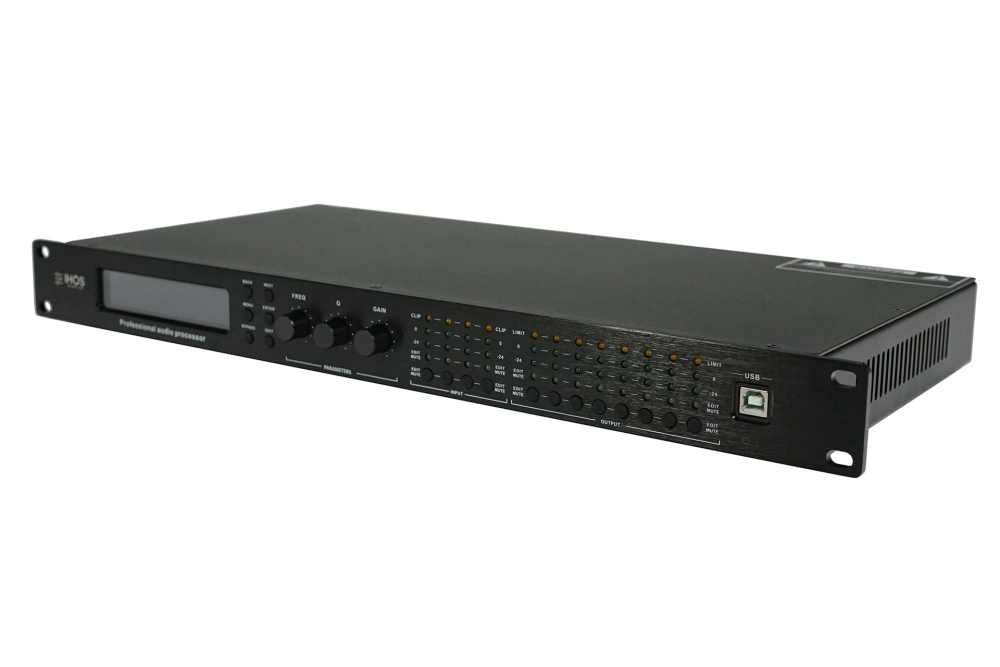

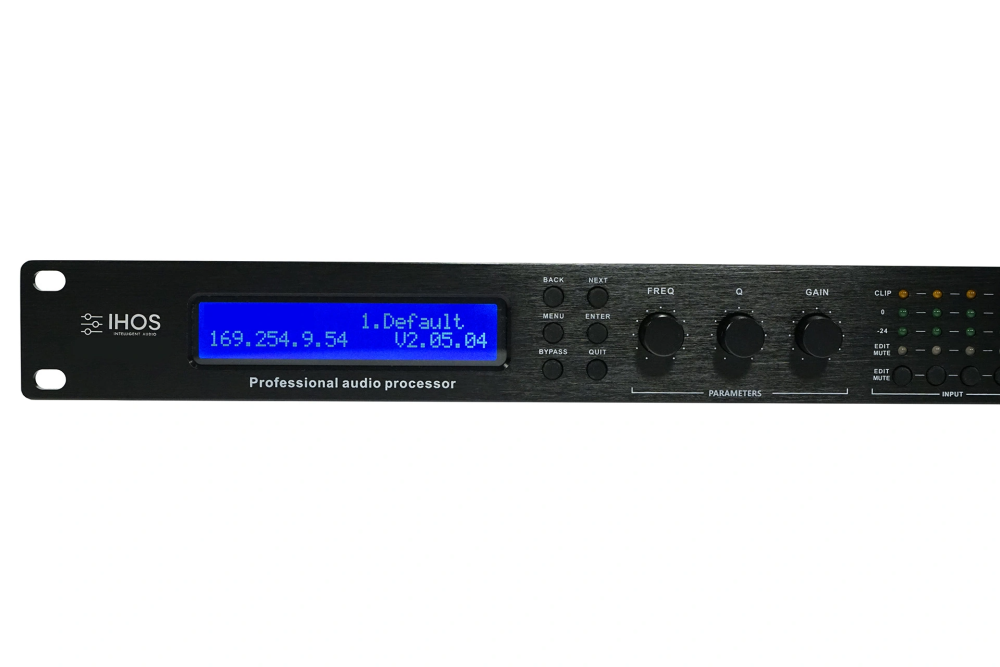

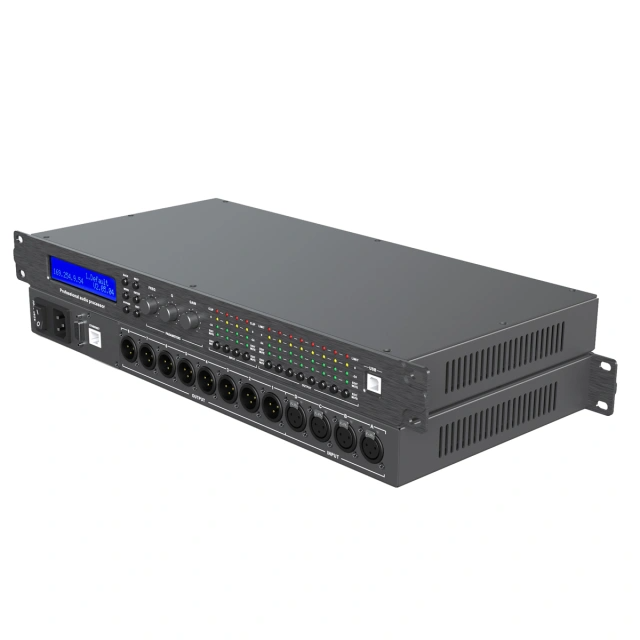

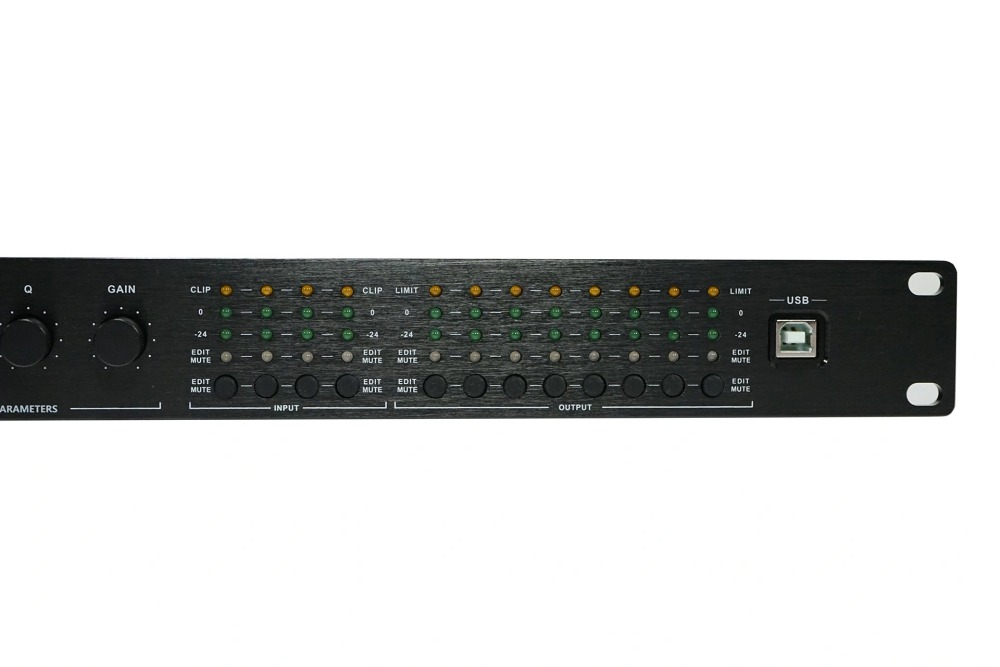

DPL480 Speaker management

SKU: ELCT-DPL-480
0.0 (0)
0 Sold
$420.00 $500.00

Key Features

  • Universal power supply (110–260 V / 50–60 Hz) for global operation

  • Four-channel power amplifier outputs: 4 × 2500 W @ 4 Ω for high-power system driving capability

  • Integrated smart DSP modules for fast configuration and precise system tuning

  • Compact 2U chassis design with 12 kg net weight for optimized rack space and easy handling

  • User-friendly preset shortcuts enabling quick system setup

  • Comprehensive protection circuitry: overheat, overload, DC protection, and overvoltage safeguards

Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
1/1
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • DPL480 Speaker management-2
  • Description

Applications

    • Small to large-scale touring systems

    • Arenas and concert halls

    • Houses of worship and museums

    • Stadiums and open-air events

    • Clubs, lounges, and bars

Amplifier section
Model DSP4.16 DSP2.20
Amplifier channels
Output power/ch 4ch*1600W 2ch*2000W
Ouput power /ch 4ch*3000W 2ch*4000W
Frequency response(±0.5dB)@1W,8 ohms 20Hz-25Khz
Sensitivity(@8ohms) 1.2V
Slew rate(@1kHz) 50V/us
THD+N <0.05% <0.05%
Cross talk(@1kHz) >75 dB
Damping factor >400
S/Nrate(20 Hz-20 kHz,Aweighted) >105dB
Powersupply Half-bridge SMPS 160-240V±10%,50-60 Hz
DSP    Section
DSP channels 2in-4out 2in-2out
AD/DA conyerters 24-bit,2-△AD/DA,48kHz sampling rate
AD/DA dynamic range 115dB
Memory/Presets 5 pre-set as user applications,30 pre-sets laptop memory
DSP function ADIAudio DSP,Input channel:Noise gate,gain,phase,mute,4 bands of PEQ.
Output channel:LPF/HPF,Delay,Phase,Mute,Limiter,9 bands of PEQ
Max delay 8.29ms(sampling rate:48K)
S/N rate >90dB
Crossover Butterworth,Linkwitz-Riley,Bessel,6dB/oct,24dB/oct
Physical Section
Input connectors Analog input(2*XLR-F,Link 2*XLR-M) Analog input(2*XLR-F,Link 2*XLR-M)
Network connectors 2x RS485 port 2xRS485 port
Output connectors 4XspeakON NI4 2xspeakON NI4
Dimension W*L*D(MM) 483*390*88 483*390*88
N.Weight(KG) 13  12
