HDL 20A

SKU: HDL-FULL-20A
0.0 (0)
0 Sold
$420.00 $500.00

Key Features:

  • Active 2-way line array module with integrated DSP and amplification

  • 2 × 10" high-power woofers and 1 × 3" compression driver

  • 1400W peak Class D amplifier (700W LF + 700W HF)

  • Frequency response: 55 Hz – 20 kHz

  • Max SPL: 135 dB

  • Lightweight composite cabinet with aluminum rigging

  • Designed for touring, live sound, and fixed installations

Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
1/1
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • HDL Series 20A
  • Description
Frequency Response(-10dB) 55 Hz-20 KHz
Max SPL(Aes peak) 135 dB(calculated)
Sensitivity(1W/1m) 97 dB
HF driver 1×4”Voice coil/Ferrite
LF driver 2×10”/2.56"Voice coil /Ferrite
Nominal dispersion angle(h×v) 100°×15°
Total Power 1400 W Peak, 700 W RMS
High frequencies 400 W Peak, 200 W RMS
Low frequencies 1000 W Peak, 500 W RMS
Crossover Frequencies 800 Hz
Connectors 2xNL4 Speakon
Dimensions(WxHxD) 714×294×446 mm
Net weight 31 kg
Shipping weight 33.4 kg

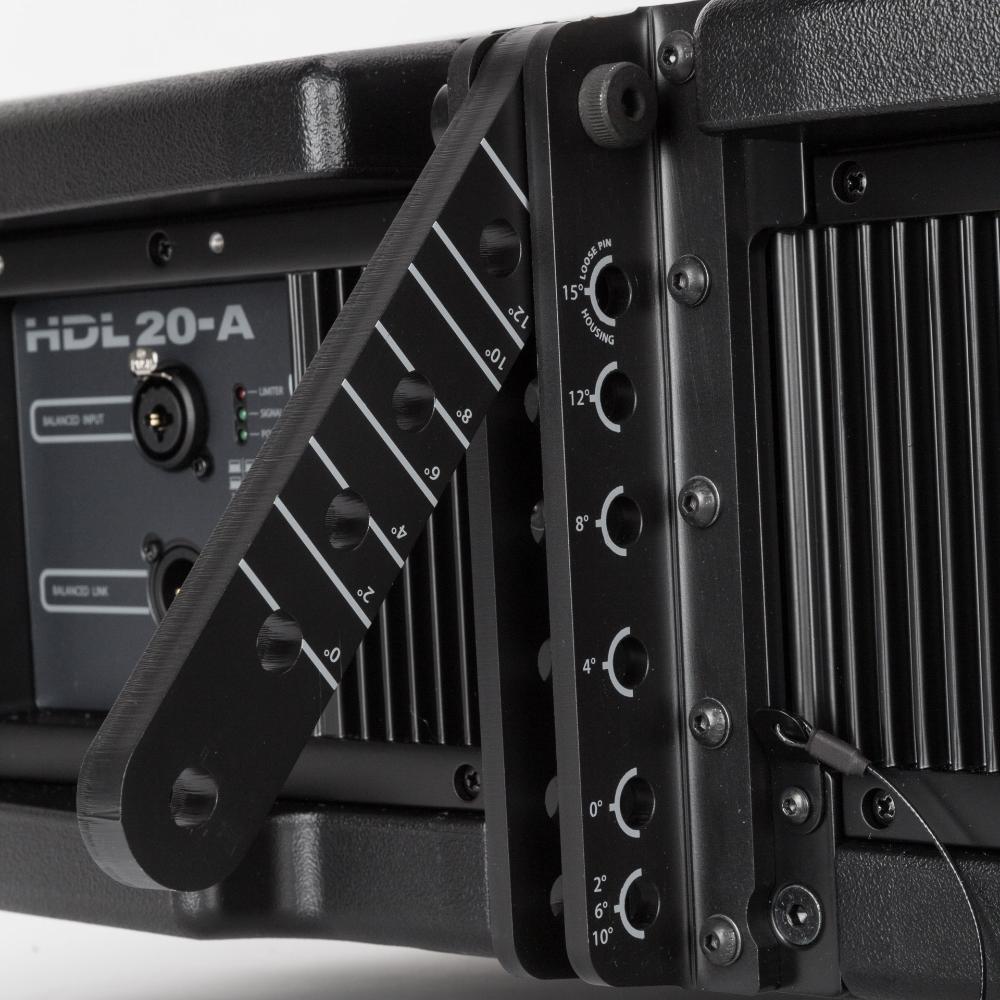

Mounting Three-point pendant mounting
Enclosure materials ABS;Water-based paint
Grill Steel grill,polymere protective net
Corel Black
