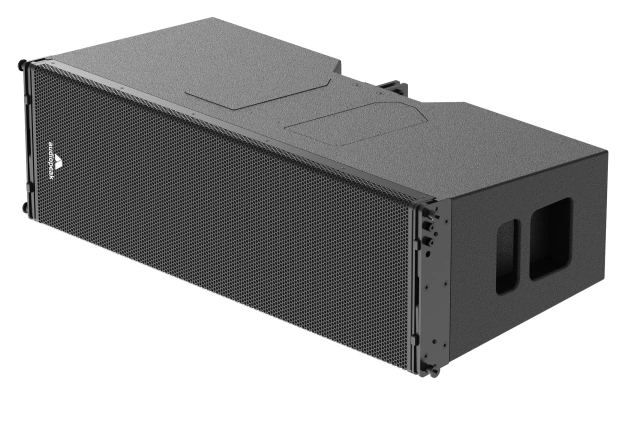

AUDIOPEAK VENUE Series full-range modules are designed for premium sound reinforcement in demanding live and installation environments. Delivering a wide frequency response of 60 Hz–20 kHz with a 4-ohm impedance, these modules ensure balanced and powerful sound coverage. With a horizontal dispersion of 90° × 8° and a sensitivity of 102 dB, they provide exceptional clarity and projection. Each unit is powered at 1800W and equipped with Speakon in/out connectors for easy setup. The system features dual 12-inch bass drivers, four 6-inch midrange drivers, and dual 3-inch high-frequency neodymium transducers. Constructed from high-grade birch plywood and protected by a 2 mm steel grille, the cabinet ensures maximum durability and acoustic performance. Total weight: 71 kg.
Specifications:
| Technical Specifications | |
| Type | Passive full range array speaker |
| Frequency range | (-10 dB) 65 ~ 20KHz (-10dB). |
| Element impedance | 4Ù |
| Directivity | 90° Horizontal X 8° (Vertical, single soundbox). |
| Max Output spl | (1m) more than 137 dB. |
| Sensitivity | 102 dB |
| Frequency division point | 250 Hz / 900 Hz. |
| System Power | 1800 Watt. |
| Signal Input Interface | 1x Speakon. |
| Signal Output Interface | 1x Speakon. |
| Speaker Unit: Bass | 12“ Bass*2 Midrange 6” Midrange*4 Treble3” driver*2 |
| Lifting: Adjustable | 0, 0.5, 1, 2, 3, 4, 5, 6, 7, 8 degrees |
| Cabinet | Full Birch PLY |
| Mesh Cover | 1,5 mm steel mesh. |
| Color | Black |
| Size | 343 x 1152 x 536 mm (H x W x D). |
| Weight | 68 Kg |
