- Power Output: 12,000 W with extended power retention for consistent performance.
- Power Supply: Universal Switching Power Supply (SMPS) with Power Factor Correction for high efficiency.
- Voltage Tolerance: Operates reliably with unstable power grids (100–240 V).
- DSP Capabilities: Extensive DSP resources for precise signal processing.
- Architecture: 4-input × 4-output configuration optimized for passive speaker systems.
- Networking: AVB Bridge and TSN-ready functionality for seamless digital audio networking.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

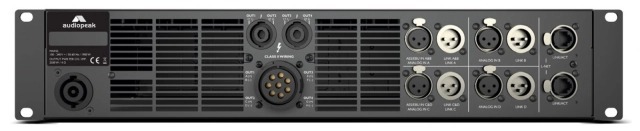

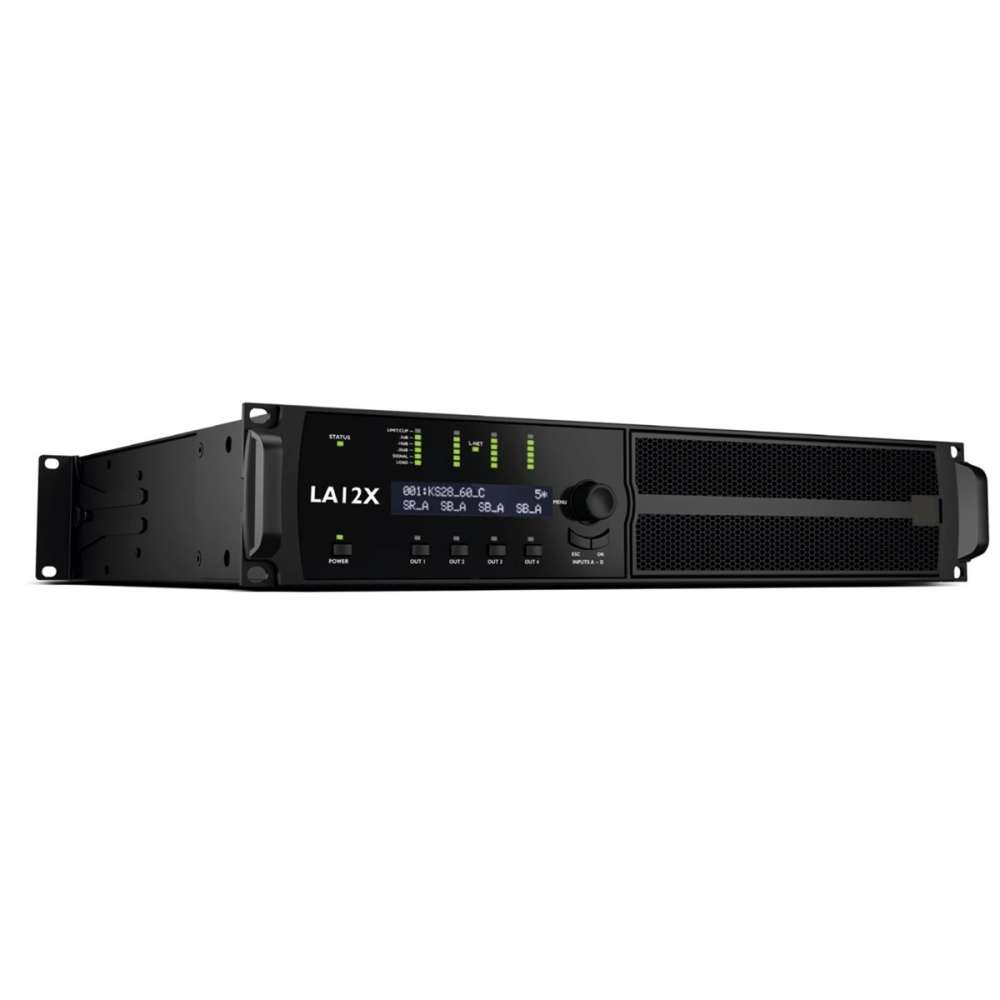

The AUDIOPEAK 12X is a four-channel amplifier controller engineered to deliver high-performance power to large-scale loudspeakers and professional line array systems, including K2, K3, and KARA 2. Designed for precision and reliability, it provides clean, dynamic amplification with advanced protection features, ensuring optimal performance in demanding live sound and touring applications.

AUDIO FEATURES
RMS Power (Full-Range)	4x 1400 W RMS at 8 Ohms
	4x 2600 W RMS at 4 Ohms
	4x 3300 W RMS at 2.7 Ohms
Frequency response	20-20000Hz (±0.1dB)
Crosstalk between inputs	>85dB
Total Harmonic Distortion (THD)	<0.05% at 60W, 8Ω
Total Harmonic Distortion (THD)	<0.1% at 120W, 4Ω
Power supply	100-240V ~ ±10%
Power supply	50-60Hz
Power mode	PFC
Work class	D
A/D converter	4 cascaded 24-bit analog/digital converters (130 dB dynamic range)
Cooling	Variable Speed Fans
Security	Over and under voltage / over temperature / overcurrent (fuse protection, and inrush current protection)
Security	Power outputs - Over current / DC / short circuit / rail over and under voltage / over temperature
PHYSICAL FEATURES
Rack height 19"	2U
Net Weight	14.5kg
Dimensions (W x H x D)	483 x 88 x 454.7 mm
