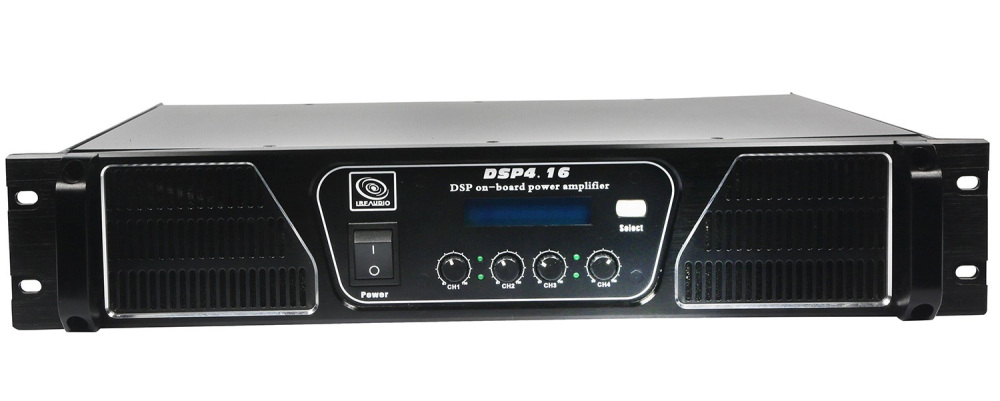

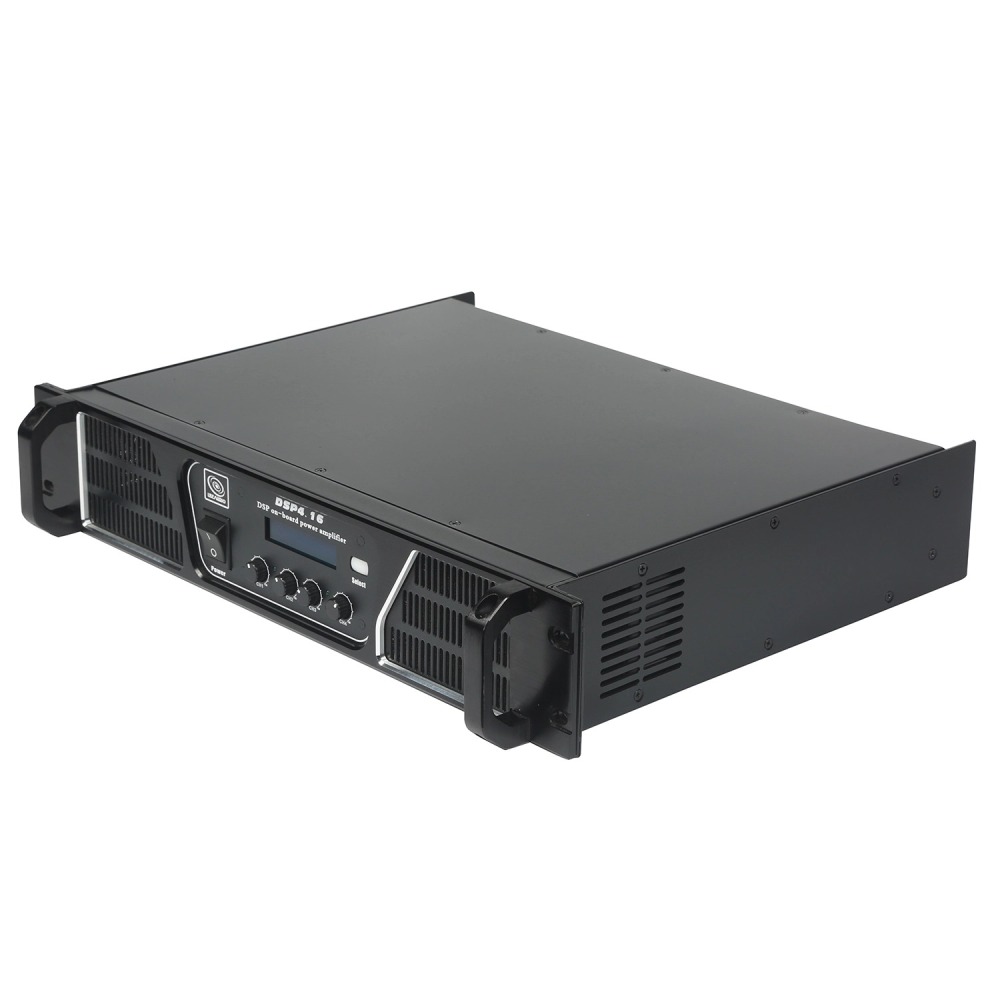

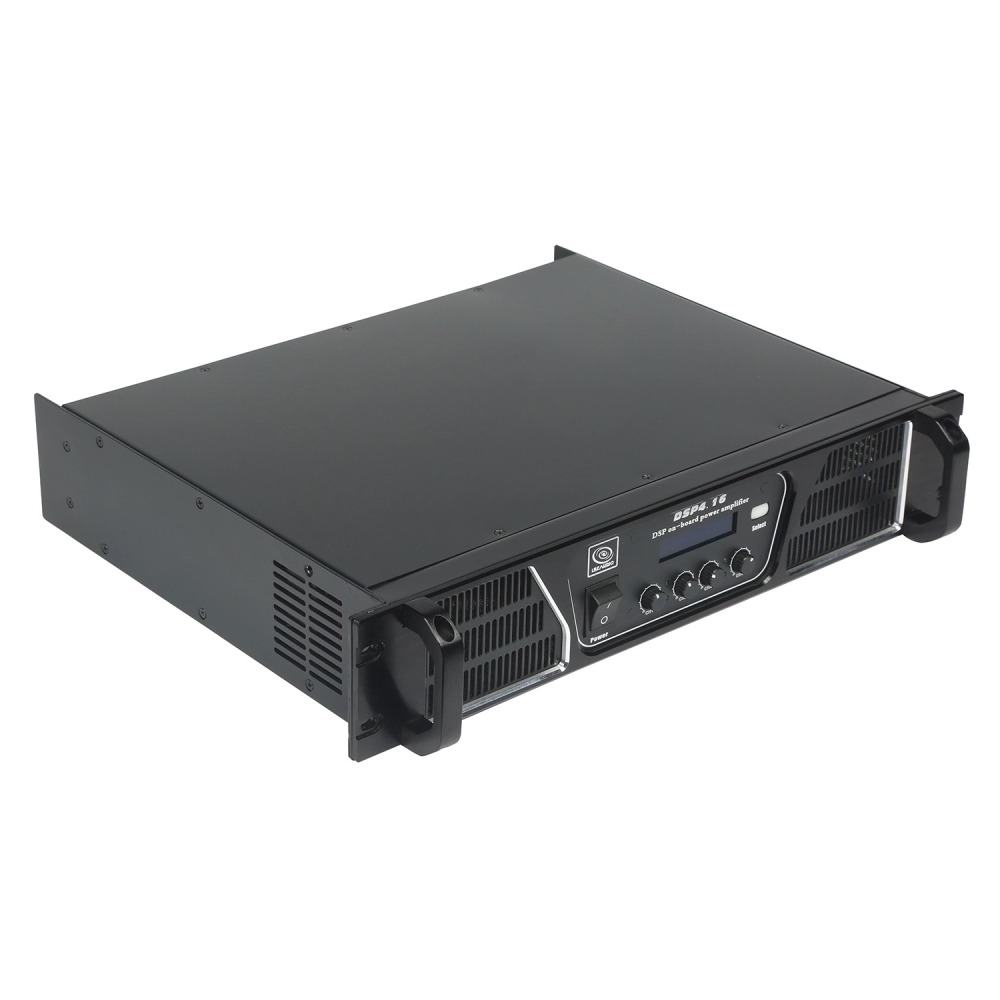

The AUDIOPEAK DSP Series is a high-performance, cost-efficient amplifier equipped with a built-in Digital Signal Processing (DSP) module for precise control and superior sound quality. Delivering exceptional power with two models 3000W and 4000W per channel at 4 ohms the DSP Series offers advanced features including crossovers, EQ filters, delay, and limiting. RS485 computer connectivity ensures fast setup and easy configuration. Designed for both professional engineers and entry-level For users, the AUDIOPEAK DSP Series provides a smart and reliable solution for any sound reinforcement system.
Specifications
| Amplifier section |
| Model |
DSP4.16 |
DSP2.20 |
| Amplifier channels |
4 |
2 |
| Output power/ch |
4ch*1600W |
2ch*2000W |
| Ouput power /ch |
4ch*3000W |
2ch*4000W |
| Frequency response(±0.5dB)@1W,8 ohms |
20Hz-25Khz |
| Sensitivity(@8ohms) |
1.2V |
| Slew rate(@1kHz) |
50V/us |
| THD+N |
<0.05% |
<0.05% |
| Cross talk(@1kHz) |
>75 dB |
| Damping factor |
>400 |
| S/Nrate(20 Hz-20 kHz,Aweighted) |
>105dB |
| Powersupply |
Half-bridge SMPS 160-240V±10%,50-60 Hz |
| DSP Section |
| DSP channels |
2in-4out |
2in-2out |
| AD/DA conyerters |
24-bit,2-△AD/DA,48kHz sampling rate |
| AD/DA dynamic range |
115dB |
| Memory/Presets |
5 pre-set as user applications,30 pre-sets laptop memory |
| DSP function |
ADIAudio DSP,Input channel:Noise gate,gain,phase,mute,4 bands of PEQ.
Output channel:LPF/HPF,Delay,Phase,Mute,Limiter,9 bands of PEQ
Max delay 8.29ms(sampling rate:48K) |
| S/N rate |
>90dB |
| Crossover |
Butterworth,Linkwitz-Riley,Bessel,6dB/oct,24dB/oct |
| Physical Section |

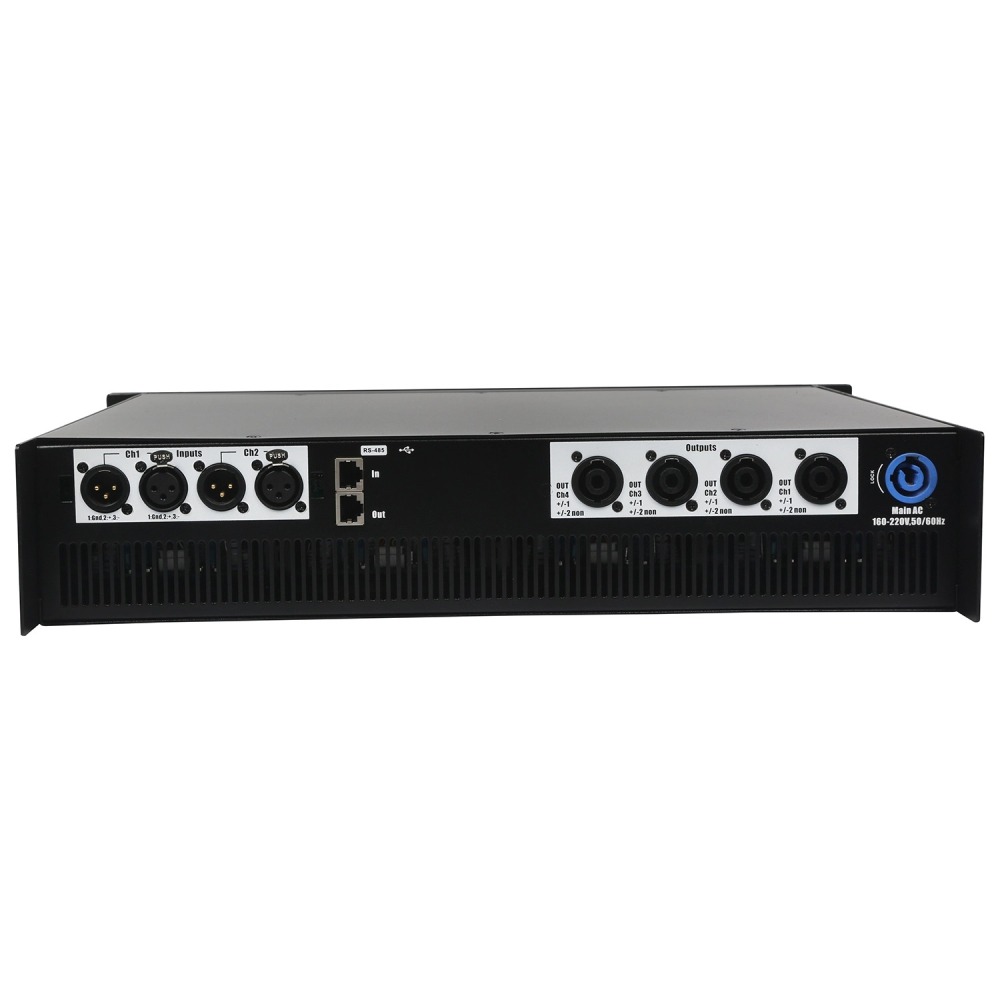

| Input connectors |
Analog input(2*XLR-F,Link 2*XLR-M) |
Analog input(2*XLR-F,Link 2*XLR-M) |
| Network connectors |
2x RS485 port |
2xRS485 port |
| Output connectors |
4XspeakON NI4 |
2xspeakON NI4 |
| Dimension W*L*D(MM) |
483*390*88 |
483*390*88 |
| N.Weight(KG) |
13 |
12 |
