| Amplifier section |
| Model |
DW2-600 |
DW3-600 |
| Amplifier channels |
2 |
2 |
| Output power /ch |
2×600W* |
3×600W* |
| Ouput power /ch |
2×600W* |
3×600W* |
| Frequency response(±0.5dB)@1W,8 ohms |
20Hz-25Khz |
| Sensitivity(@8ohms) |
1.2V |
| Slew rate(@1 kHz) |
50V/us |
| THD+N |
<0.05% |
<0.05% |
| Cross talk(@1kHz) |
>75 dB |
| Damping factor |
>800 |
| S/N rate(20 Hz-20 kHz,Aweighted) |
>105dB |
| Power supply |
Half-bridge SMPS efficient technology |
| Main AC |
160-240V±10%,50-60 Hz |
| DSP Section |
| DSP channels |
2in-2out |
2in-2out |
| DSP construction |
Built-in ARM Digital processing operation system |
| AD/DA converters |
24-bit,AD/DA,48kHz sampling rate |
| AD/DA dynamic range |
115dB |
| Memory/Presets |
5 pre-set as user applications,30 pre-sets laptop memory |
| DSP function: |
Input channel:Noise gate,gain,Polarity,mute,PEQ
Output channel:Crossover,Delay,.Polarity,Mute,Limiter,PEQ |
| S/N rate |
>90dB |
| pelay |
Max delay 8.29ms(sampling rate:48K) |
| Crossover |
Butterworth,Linkwitz-Riley,Bessel,6dB/oct,24dB/oct |
| Limiters |
PEAK,RMS,Truepower,Clipping,Overheat |
| Physical Section |

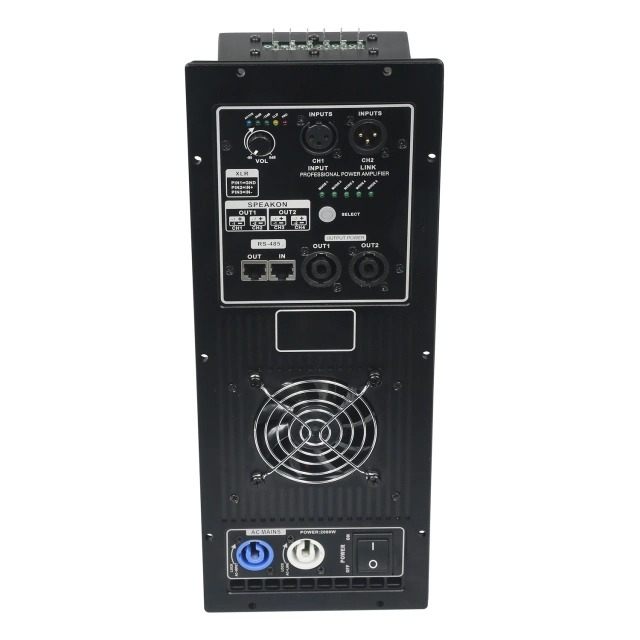

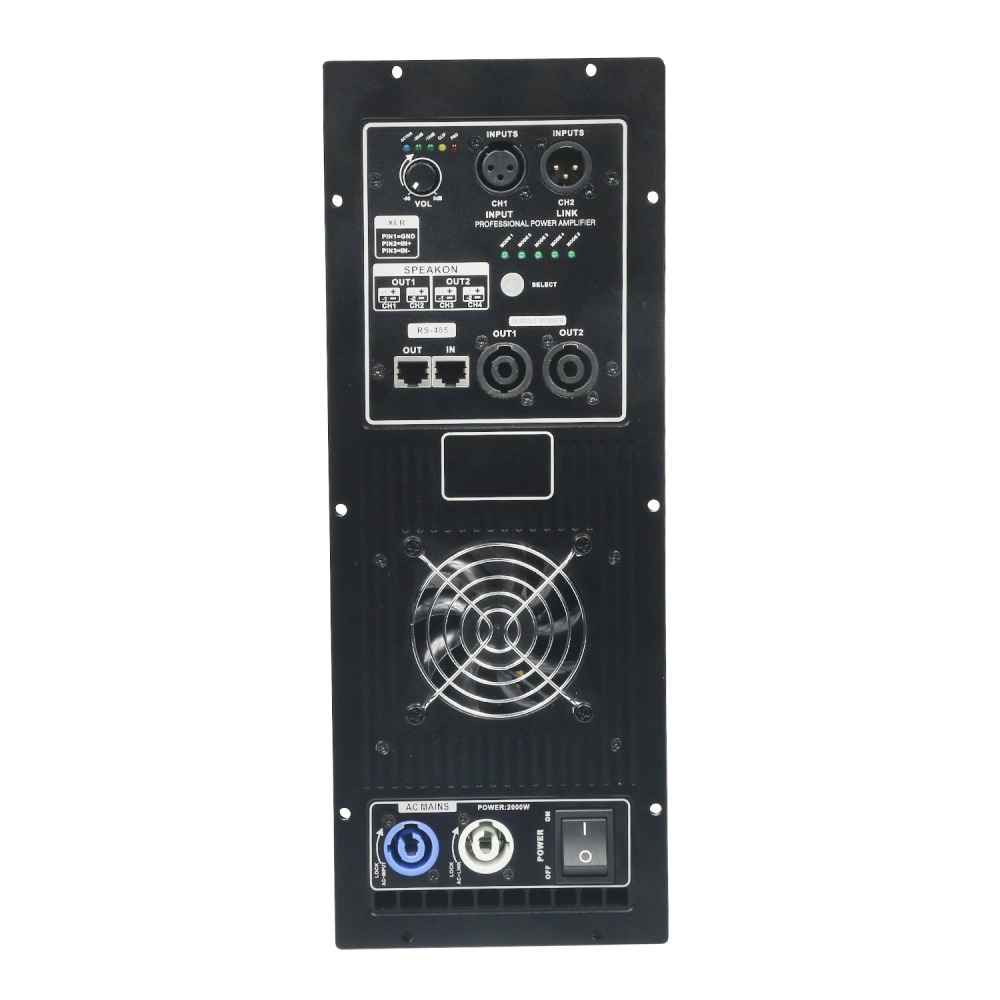

| Input connectors |
Analog XLR(1*in,1*Out) |
Analog XLR(1*in,1*Out) |
| Networkconnectors |
2xRS485 ports |
2xRS485 ports |
| Output connectors |
2xspeakON NI4 |
2xspeakON NI4 |
| Dimension W*L*D(MM) |
142*375*85 |
142*375*85 |
| N.Weight(KG) |
3 |
3 |
