FM series power amplifier

SKU: AMP-FM-3000
0.0 (0)
0 Sold
$420.00 $500.00

Key Features

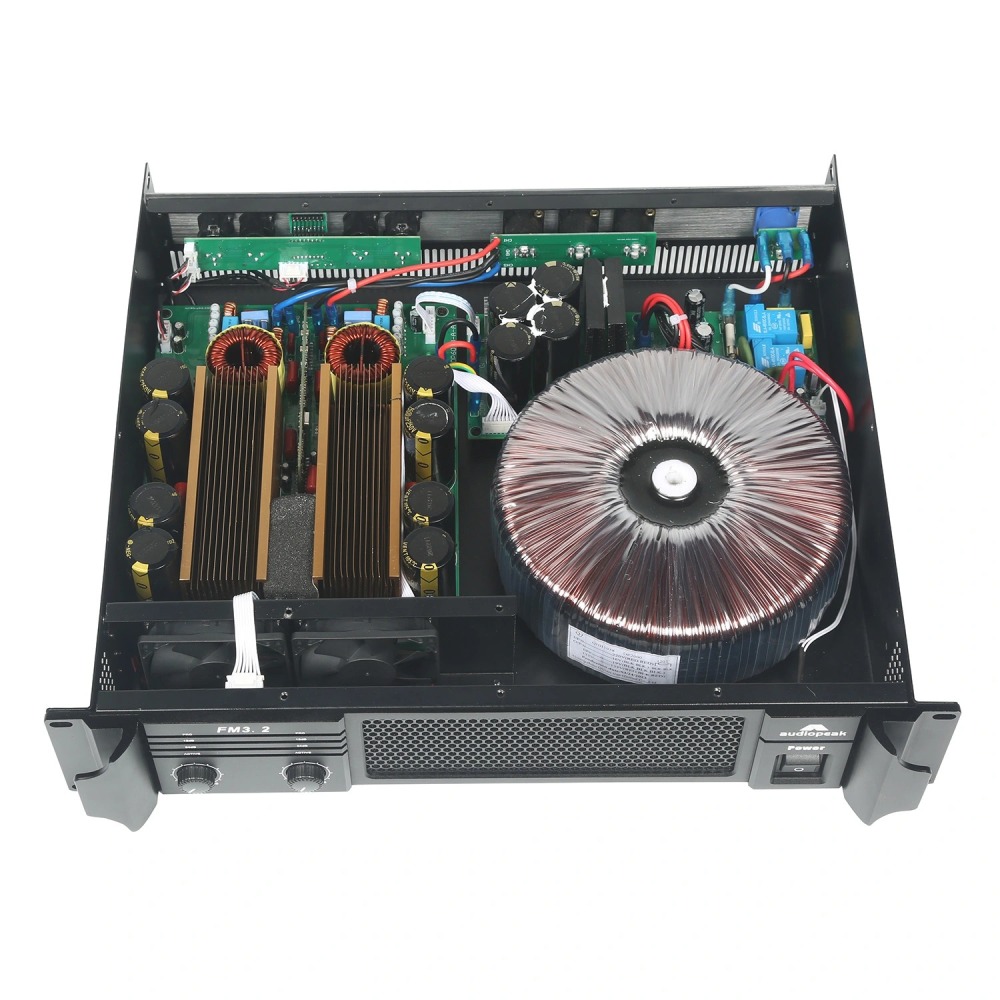

    • High-current toroidal transformers with high magnetic flux cores for dynamic range and low distortion at 4Ω

    • High-efficiency Class D amplifier circuit modules, working stably at 2Ω

    • Intelligent low-noise variable-speed fans ensure continuous cooling of the system

    • Low THD and high damping factor for excellent sound quality

    • High-quality glass epoxy, double-sided PTH PCBs, and premium components

Applications

    • Small to large-sized touring and installed applications

    • Pubs, restaurants, and entertainment outlets

    • Theatres and live clubs

    • Houses of worship

    • Emergency evacuation systems

    • Excellent voice amplification and live music reproduction systems

Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
1/1
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • FM series power amplifier
  • Description

Model FM1.2 FM1.5 FM2.2 FM3.2
STEREO    MODE:80 2×1200W 2×1500W 2×2000W 2×3000W
STEREO    MODE:40 2×2000W 2×2500W 2×3500W 2×5800W
STEREO    MODE:20 2×2500W 2×3000W 2×4000W 2×6000W
BRIDGEMODE:80 4000W 5000W 7000W 11000W
Slew rate(at 1 kHz) >70V/μs
Input sensitivity 0.775V  1.0V/    1.414V
THD <0.5%
Crosstalk -70dB
Frequency response 20Hz-20Khz(±0.5dB)
Input impedance Balance 20kohm,unbalance 10kohm
Damping Factor 700:1
Signal to noise ratio >105dB
Power Requirements 180V-240V/60Hz
Protection over heat/thermal output power control/long termoutput
power control output short-circuit/overload protection/DC protection
Cartoon packing 500×450×90
Netweight(KG) 16  18  22  32
